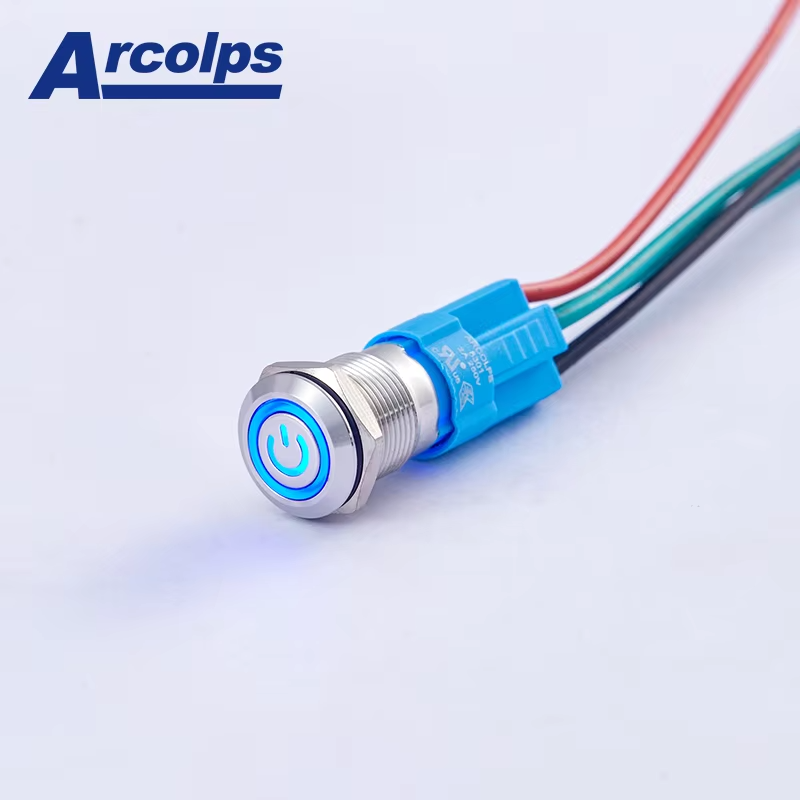

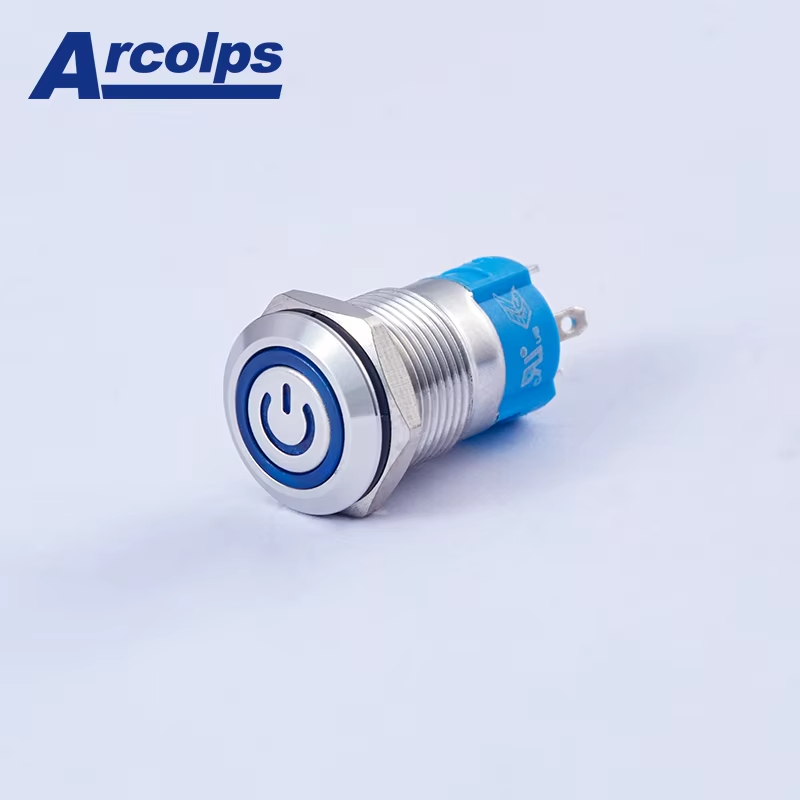

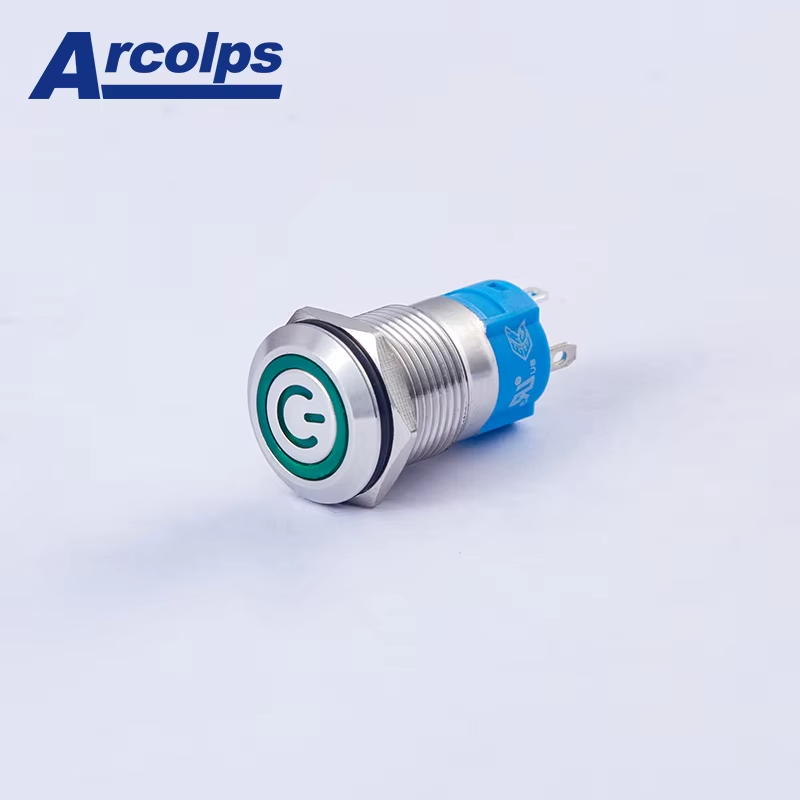

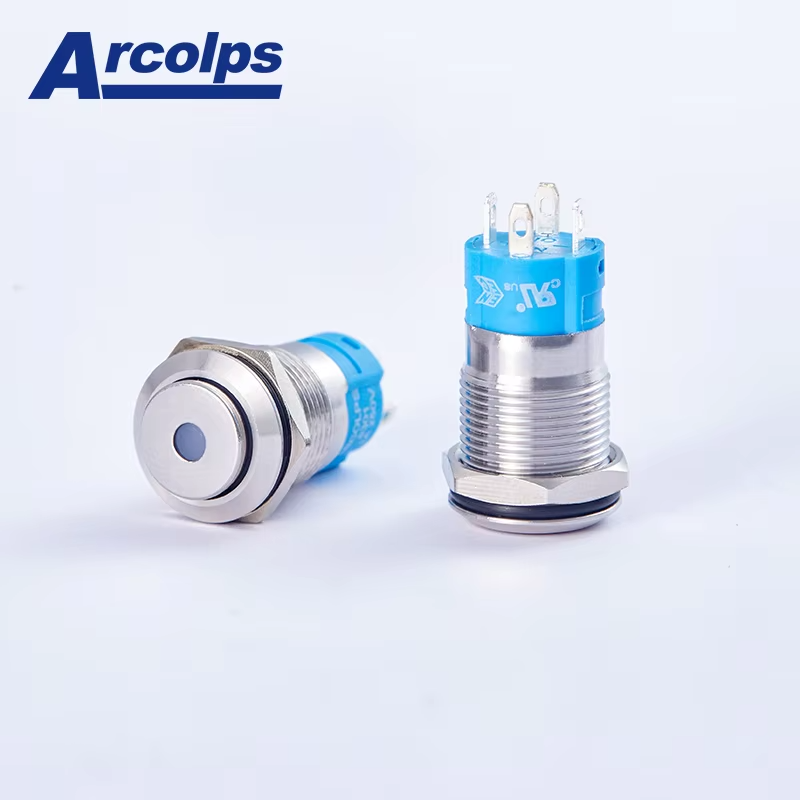

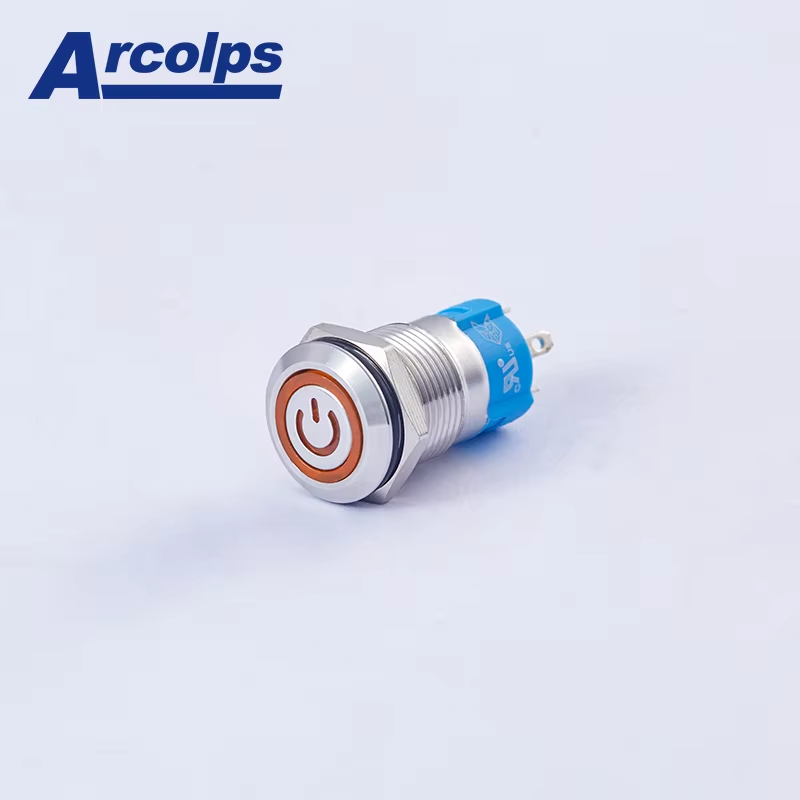

12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified

The 12mm Low Current Metal Push Button Switch is a compact, durable solution for low-power applications. With its sleek stainless-steel body, IP67 waterproof rating, and optional LED illumination, this momentary switch is ideal for electronics, control panels, and home appliances.

• Model Number: 830112
• Rating: 2A 250V T105
• Operating Temp.Range: -25℃±105℃
• Contact Resistance: ≤50mΩ
• Insulation Resistance: ≥1000MΩ
• Dielectric Strength: Contact to Panel≥2000V, Contact to Contact 1500V
• Mechanical Life: 200000 Cycles
• Electrical Life: 50000 Cycles
• Sealing(front of Panel only): Protection Classification IP65, and can be made to IP67 upon request
