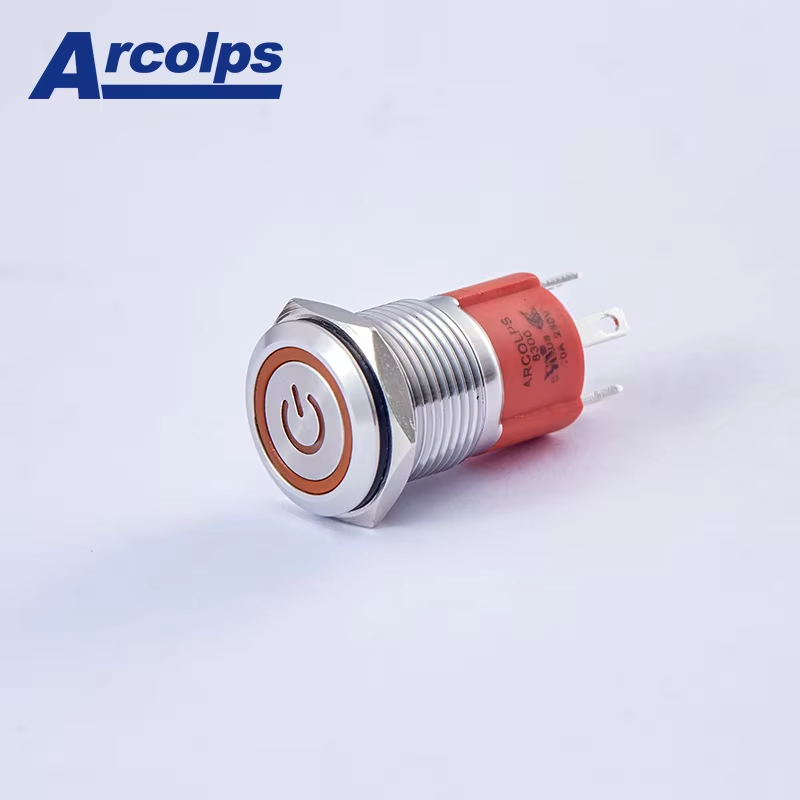

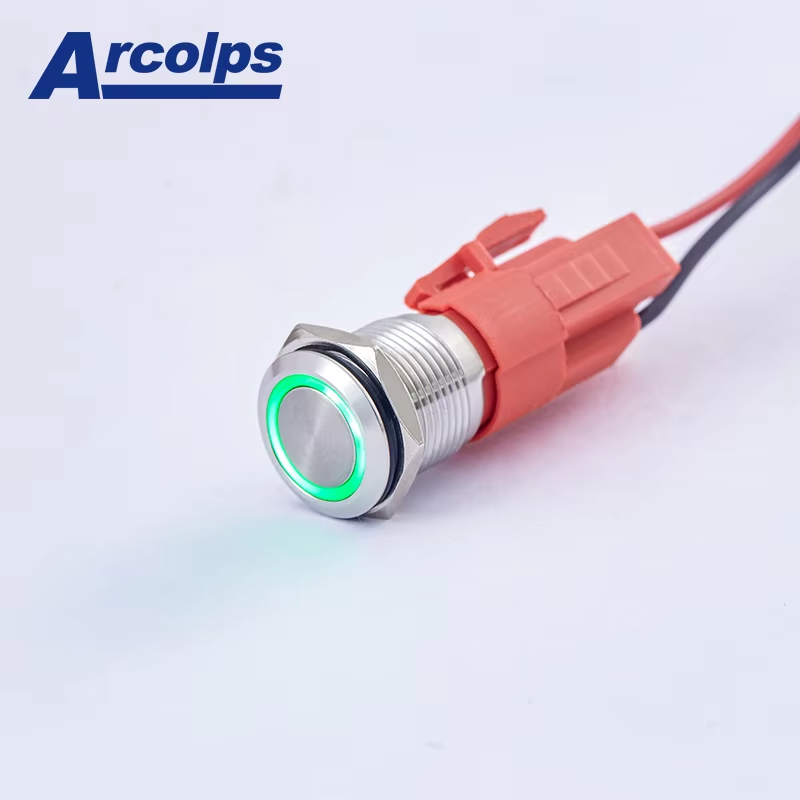

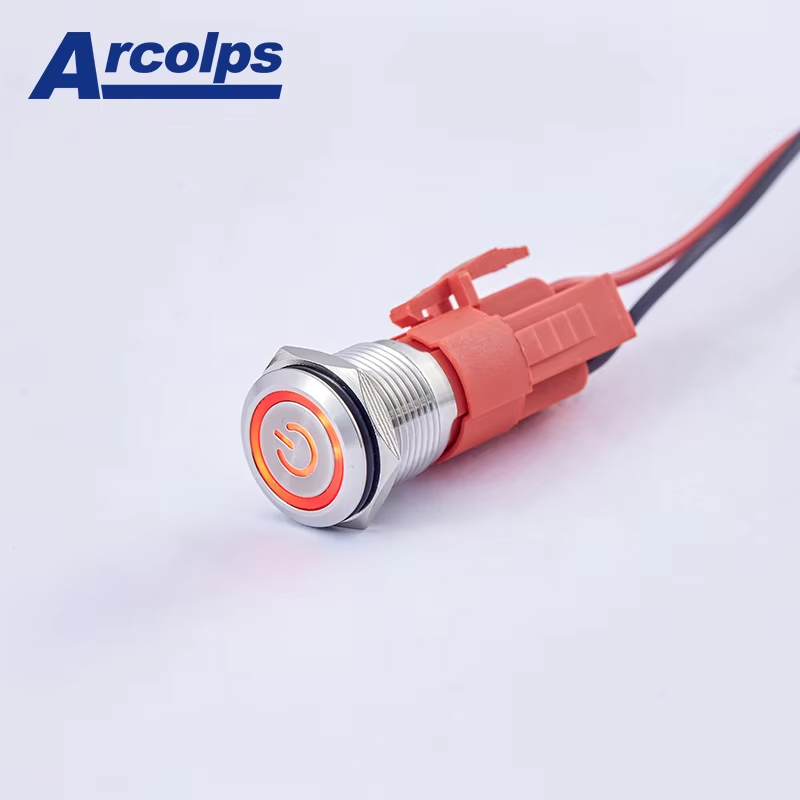

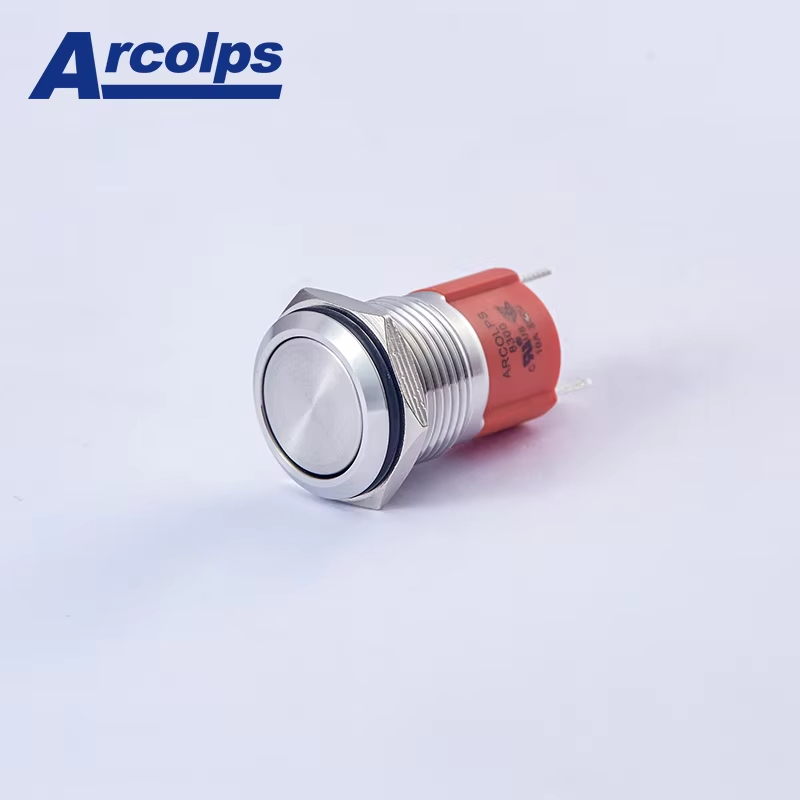

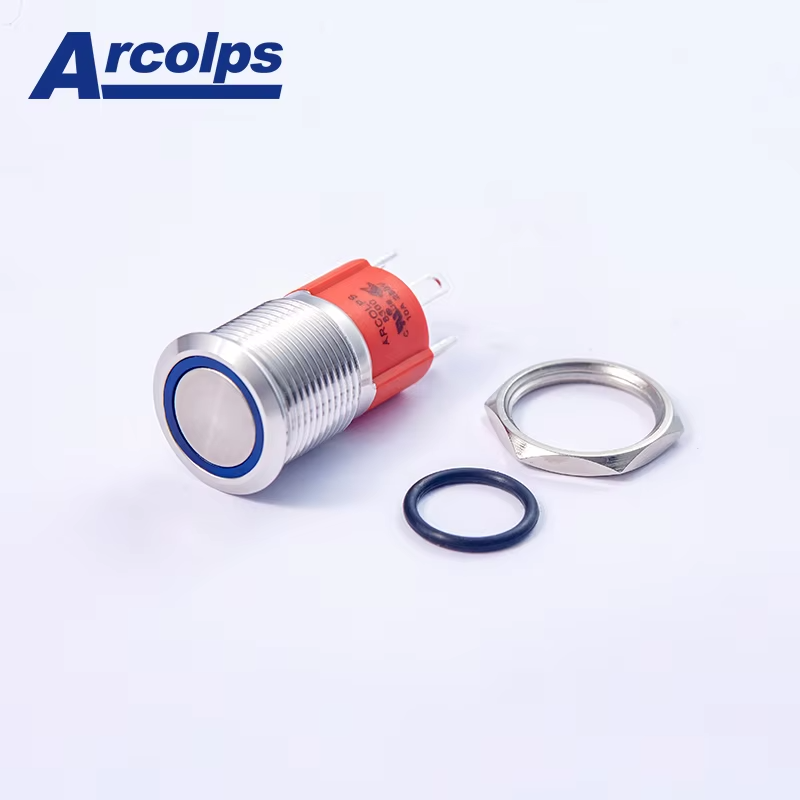

16mm Waterproof 10A Momentary Metal Push Button Switch

The Arcolps 16mm Waterproof Push Button Switch is built for high current applications (10A, 250V). With its locking mechanism and IP67 waterproof rating, this switch offers long-lasting durability in industrial and outdoor environments. The LED indicator provides clear, visible feedback, making it ideal for control panels and automotive applications.

• Rating: 10A 250V T105
• Operating Temp.Range: -25℃±105℃
• Contact Resistance: ≤50mΩ
• Insulation Resistance: ≥1000MΩ
• Dielectric Strength: Contact to Panel≥2000V, Contact to Contact 1500V
• Mechanical Life: 200000 Cycles
• Electrical Life: 50000 Cycles
• Sealing(front of Panel only): Protection Classification IP65, and can be made to IP67 upon request
