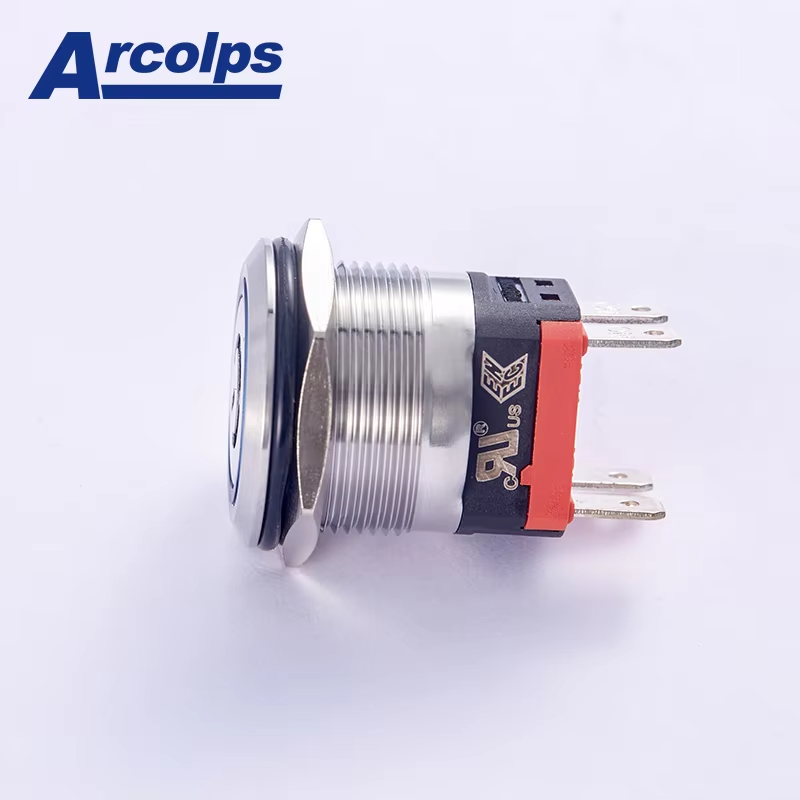

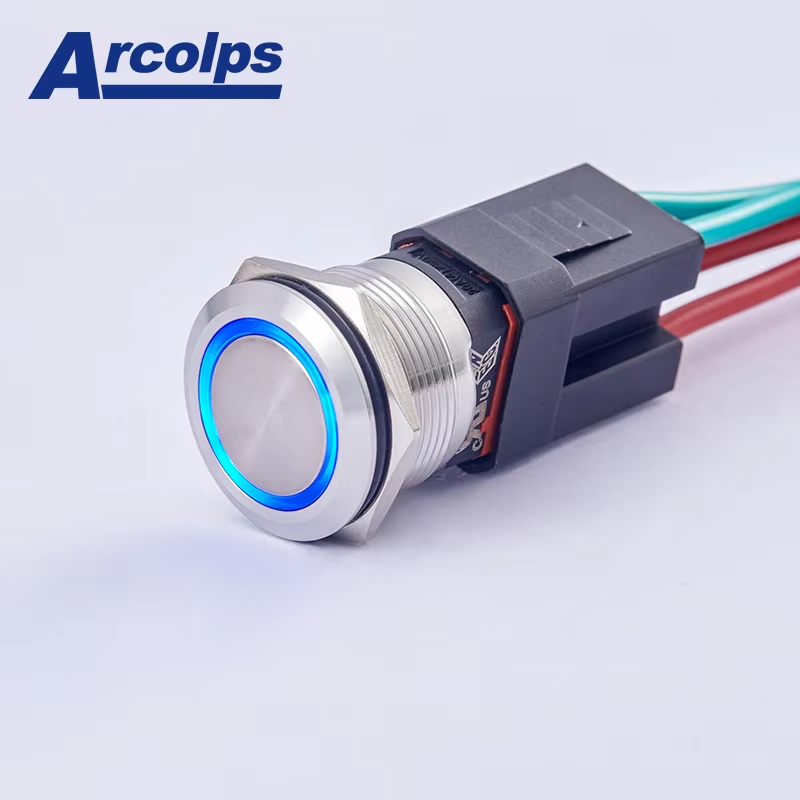

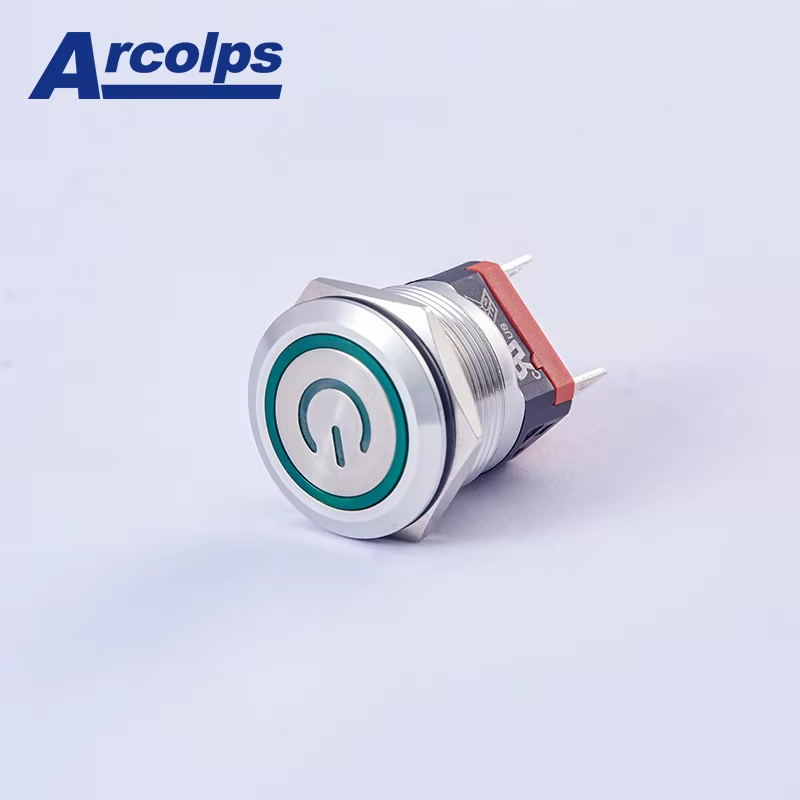

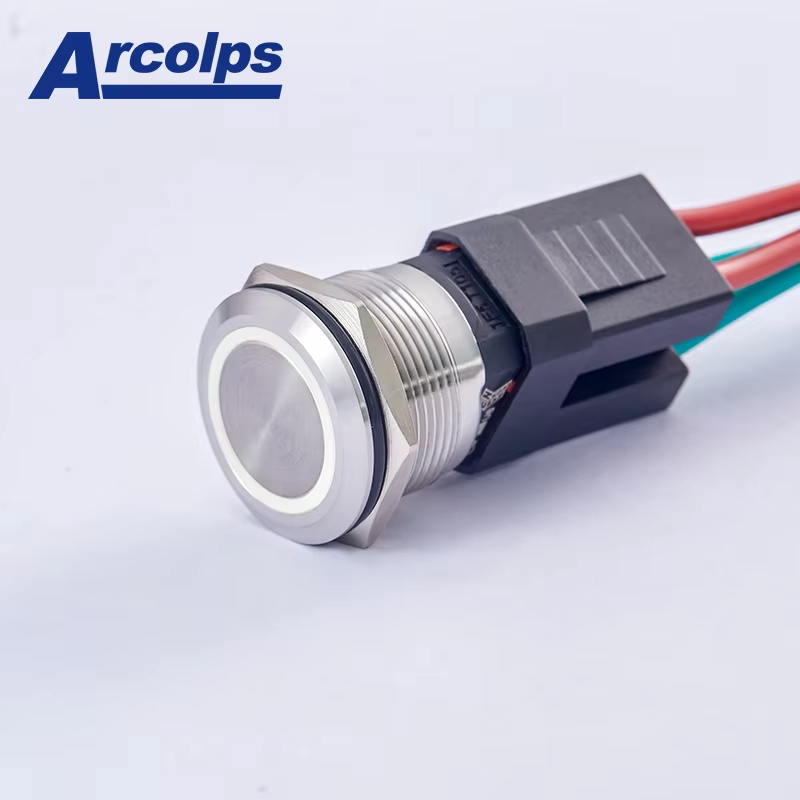

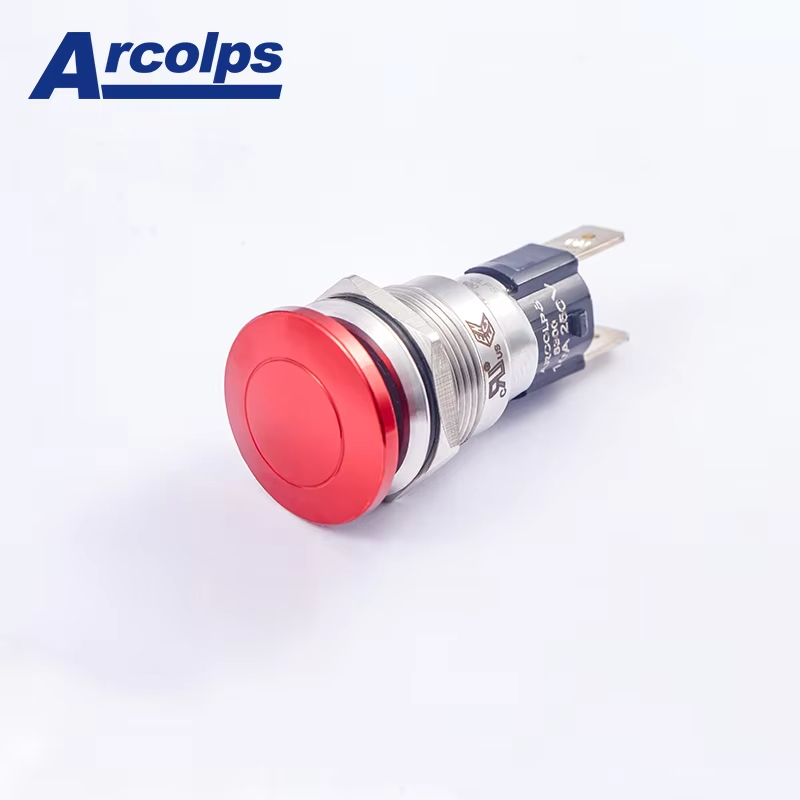

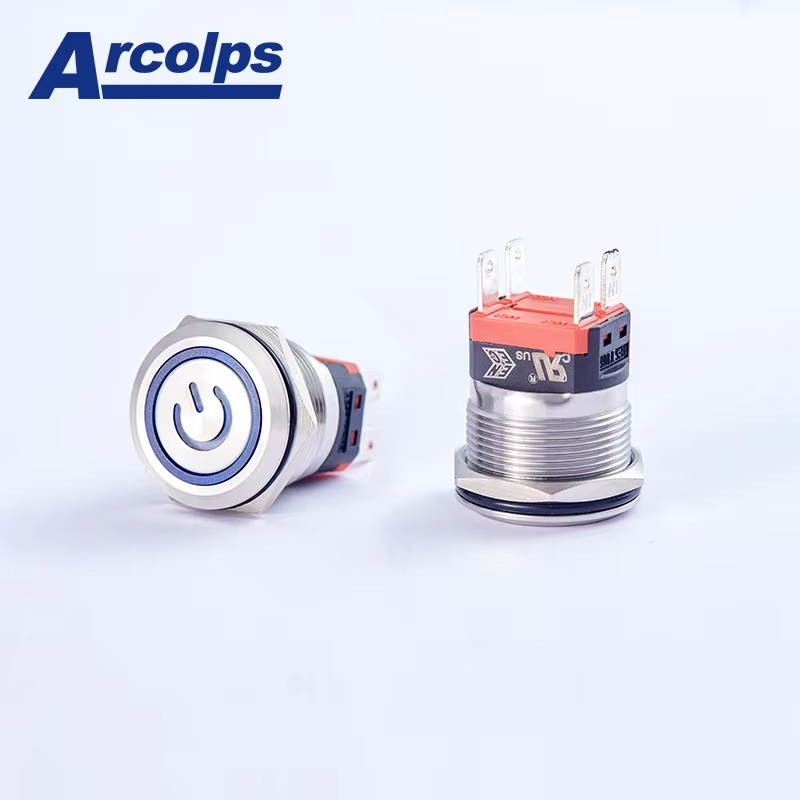

22mm 10A High Current Waterproof Metal Push Button Switch

$1.00 USD

Quantity

Robust 22mm metal push button switch with 10A high current, IP67 waterproof. ENEC and IEC certified for reliable performance in harsh industrial conditions.

Model Number: 830022
Rating: 10A 250V T105
Operating Temp.Range: -25℃±105℃
Contact Resistance: ≤50mΩ
Insulation Resistance: ≥1000MΩ
Dielectric Strength: Contact to Panel≥2000V, Contact to Contact 1500V
Mechanical Life: 200000 Cycles
Electrical Life: 50000 Cycles
Sealing(front of Panel only): Protection Classification IP65, and can be made to IP67 upon request
